Common shear wall design mistakes are defined as installation, detailing, or coordination errors that reduce a wood-framed wall's capacity to resist lateral forces from wind or seismic events. These errors routinely violate requirements in the IRC 2024, SDPWS, and related structural standards. The most frequent failures include incorrect nailing schedules, unauthorized panel modifications, load path discontinuities, and substituting nonstructural panels for engineered sheathing. Each mistake compounds the others. A wall that passes visual inspection can still be critically undersized if nailing spacing, panel type, or anchorage details are wrong.
1. What are common shear wall design mistakes in edge nailing?

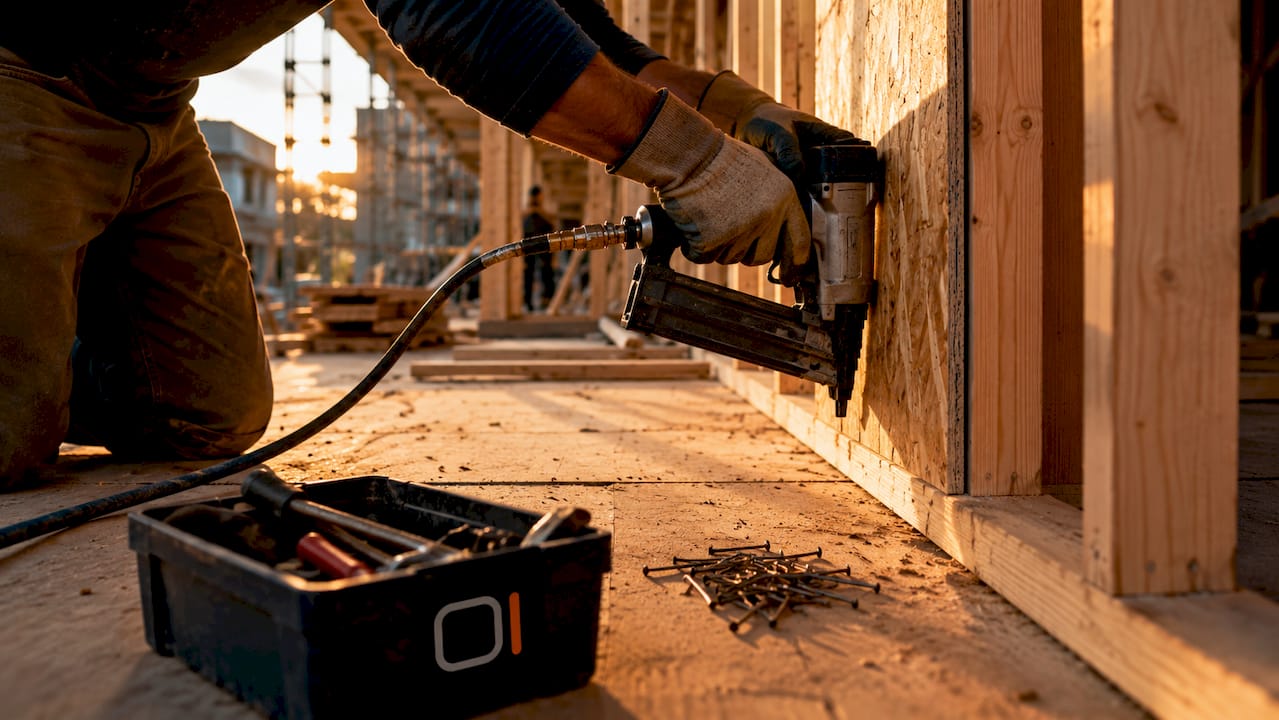

Edge nailing is the single most inspected and most frequently failed element in wood shear wall construction. The nailing schedule at panel edges directly controls the wall's rated shear capacity, and even small deviations produce large capacity losses.
Using 12-inch spacing instead of the required 6-inch edge nailing reduces wood shear wall design capacity by about 50%. That means a wall designed to carry 800 plf effectively carries only 400 plf if a framer doubles the spacing in the field.
Common field failures include:
- Missed nails at panel edges near corners and blocking
- Overdriven nails that break through the panel face veneer
- Edge distance violations where nails are placed too close to the panel edge, splitting the wood
- Wrong nail diameter or length substituted without checking ICC-ES equivalency
Pro Tip: Schedule a nailing inspection before any cladding or insulation goes up. Once the wall is covered, verifying edge nailing requires destructive investigation. A quick pre-sheathing walkthrough with the nailing schedule in hand catches most errors at zero cost.
The IRC 2024 specifies nailing schedules for both wind and seismic conditions, and the required spacing tightens significantly in higher-hazard zones. Engineers should confirm the governing load case and mark the required schedule directly on the framing drawings, not just in the general notes.
2. How do panel modifications during construction cause structural risks?
Unauthorized field modifications are the most dangerous category of shear wall mistakes. They are also the hardest to detect after the fact.
Lateral loads travel through a continuous path: roof diaphragm, shear wall, foundation. Every shear wall segment in that path must maintain its designed length, height, and nailing pattern. When a framer shortens a panel to accommodate a window, duct, or electrical panel without engineering review, the capacity of that wall line drops without any visible sign of the change.
Modifying shear walls during construction without professional review is the single most dangerous error in wood-framed construction. Unauthorized modifications may pass visual inspection but weaken the lateral system substantially, often remaining undetected until a significant lateral load event occurs.
The risks of unapproved modifications include:
- Reduced full-height segment length, which directly lowers the wall line's shear capacity
- Broken load path continuity when a panel is removed entirely for MEP routing
- Hidden damage behind cladding that cannot be verified without destructive investigation
- Asymmetric wall placement relative to the building's center of mass, which leads to disproportionate lateral loads and increases failure risk in seismic events
Coordination between the structural engineer, architect, and MEP trades before framing begins is the only reliable way to prevent these errors. Any proposed field change to a shear wall segment must go back to the engineer of record for recalculation before the framer touches it.
3. What material and fastening errors reduce shear wall effectiveness?
Material substitutions and fastening defects are common shear wall coordination mistakes that often originate from procurement decisions made without structural input.
Overdriven nails reduce design shear capacity per fastener by approximately 20%. When a pneumatic nailer is set at too high a pressure, the nail head punches through the panel face veneer and loses its bearing surface. The wall looks fully nailed but is not.
The remediation protocol is specific. When more than 20% of perimeter nails are overdriven beyond 1/16 inch, industry best practice requires adding one additional fastener for every two overdriven nails, unless nail density prevents it without splitting the framing.
The most common material errors, in order of frequency:
- Overdriven nails from uncalibrated pneumatic nailers
- Wrong nail type (sinker vs. common, or incorrect diameter) without verifying ICC-ES equivalency reports
- Nonstructural panel substitution, where foam or fiberboard is installed in place of rated structural wood panels
- Inadequate nail penetration into the framing member, especially at top and bottom plates
- Mixing panel thicknesses across a wall line without adjusting the nailing schedule
Framing teams frequently mistake nonstructural panels such as foam or fiberboard for engineered wood structural panels. This results in failed framing inspections and compromised shear capacity. Gypsum board and foam sheathing have no rated shear value under SDPWS and cannot substitute for structural wood panels, regardless of thickness.
Pro Tip: Verify nailer pressure at the start of each shift by driving a test nail into scrap framing lumber. The nail head should sit flush, not countersunk. Adjust the nailer before touching the shear wall panels.
4. How do load path discontinuities and improper anchoring affect performance?
A shear wall only works when every element in the load path is connected. Missing one anchor bolt or omitting a hold-down connector breaks the chain, and the wall cannot transfer lateral force to the foundation regardless of how well the sheathing is nailed.
Proper load paths require vertically stacked shear walls with appropriate connectors and anchor bolts at each level. Offset walls between floors create eccentricities that demand transfer diaphragm design. Many residential projects skip this step, assuming the floor framing handles the transfer automatically.
The table below summarizes the most critical discontinuity types and their structural consequences.
| Discontinuity type | Structural consequence |
|---|---|
| Missing hold-down at wall end post | Wall overturns under lateral load; full segment capacity is lost |
| Offset shear walls between floors | Undesigned transfer forces in floor diaphragm; potential diaphragm failure |
| Missing anchor bolts at sill plate | Wall slides on foundation; no shear transfer to footing |
| Broken chord at opening | Diaphragm chord forces not resolved; localized framing failure |
Reinforcement ratios also matter in concrete or masonry shear walls adjacent to wood-framed systems. Minimum vertical and horizontal reinforcement ratios between 0.2% and 0.25% are recommended to maintain ductility and control cracking under cyclic loading. Falling below these ratios produces brittle failure modes with little warning.
Detecting discontinuities before construction is complete requires a deliberate review of the structural drawings against the framing plan. Engineers should check that every shear wall segment has a designated hold-down, that anchor bolt spacing matches the design, and that transfer elements are detailed at every floor level where walls are offset.
5. What best practices help avoid shear wall design errors?
The best practices for shear walls share one common principle: resolve design conflicts before framing begins, not after.
- Use BIM clash detection at the design phase to identify MEP penetrations that conflict with shear wall locations. BIM clash detection is the most reliable method to catch conflicts that cause costly retrofits and potential structural compromise.
- Standardize nailing schedules on the drawings with zone-specific callouts. Do not rely on general notes that framers rarely read.
- Conduct pre-framing coordination meetings with the structural engineer, architect, and MEP trades to lock in wall locations before any material is ordered.
- Require field inspections at three stages: before sheathing, after sheathing and nailing, and after hold-down installation.
- Stay current on code updates. The IRC 2024 and SDPWS include revised bracing requirements that affect minimum wall lengths and nailing schedules in wind and seismic zones. Review the 2026 sheathing code guide for the latest requirements.
- Train framing crews on the difference between structural and nonstructural panels, correct nailer settings, and the consequences of field modifications.
- Use design verification software that organizes wall lines, nailing schedules, hold-down forces, and story drift checks in one place. ShearWise Pro generates clean PDF reports that support inspection coordination and reduce the chance of missed details.
Routine field training is underused on residential projects. A 30-minute pre-framing walkthrough with the lead framer, covering nailing schedules and panel layout, prevents the majority of fastening and substitution errors before they happen.
Key takeaways
The most effective way to prevent shear wall failures is to resolve nailing, panel, and load path details before framing begins, not during or after construction.
| Point | Details |
|---|---|
| Edge nailing spacing is critical | Doubling edge nail spacing from 6 to 12 inches cuts wall capacity by about 50%. |
| Field modifications require engineering review | Unauthorized panel changes break lateral load paths and often go undetected until a seismic or wind event. |
| Material substitutions fail inspections | Foam and fiberboard panels have no rated shear value and cannot replace structural wood sheathing. |
| Load path continuity requires every connector | Missing hold-downs or anchor bolts eliminate a segment's full capacity regardless of sheathing quality. |
| Pre-framing coordination prevents most errors | BIM clash detection and pre-framing meetings resolve MEP conflicts before they compromise shear wall locations. |
