Hold-Down Rods in Multi-Story Wood Buildings: 2026 Guide

Continuous hold-down rods are the vertical element of the continuous load path in wood-framed buildings, transferring overturning tensile forces from upper-story shear walls down to the foundation. For 1–2‑story residential work, discrete hold-down connectors handle most conventional exterior walls — but when cumulative uplift or drift limits push demands beyond what a single connector can manage, a rod system becomes the correct specification.

Experimental testing confirms that continuous rod systems increased wall strength by about 35.8% compared to discrete hold-downs and maintained elastic behavior to larger drift levels. That performance gap is the core reason rod systems appear in high-wind and seismic designs where stacked wall lines must share tension across stories.

Table of Contents

• When should you specify a rod system instead of discrete hold-downs?
• How a rod hold-down system works: components and load path
• Design approach: loads, combinations, and where simplified rules fail
• Short worked example: two-story overturning and rod sizing
• Detailing and installation: plates, anchors, shrinkage, and inspection
• Common mistakes and how to avoid them
• What your drawings and submittals must show
• Key Takeaways
• Why integrated workflows reduce rework on rod hold-down designs
• ShearWise Pro fits directly into this workflow
• Authoritative sources and code references

When should you specify a rod system instead of discrete hold-downs?

Three categories of triggers drive this decision.

Quantitative triggers:

• Cumulative story uplift or factored tension exceeds the published capacity of available discrete connectors for the post size and fastener schedule you are using.
• Story drift or deflection limits control the design and rod elongation must be accounted for explicitly.
• Stacked shear wall lines where tension accumulates across both stories and a single-story connector cannot resolve the net demand.

Qualitative triggers:

• Long, narrow shear wall segments with high unit shear demands.
• Discontinuous diaphragms or irregular mass distribution that concentrates load into a small number of wall lines.
• Constructability constraints where discrete anchors are likely to be missed or mislocated during framing.

Project and AHJ triggers:

• Local code or AHJ requirements that mandate rod systems above a certain seismic design category or wind speed.
• Deferred submittal rules that require the engineer of record (EOR) to specify anchor embedment at permit time.

Pro Tip: Decide at schematic design whether a rod system is likely. Retrofitting anchor locations after the foundation is poured is expensive and sometimes impossible without core drilling.

How a rod hold-down system works: components and load path

A rod system is not simply a heavy-duty hold-down. It is an assembly of interacting components, and system performance depends on every element being correctly sized and detailed.

Components:

• Threaded rod(s) and couplers: The primary tension element running vertically through the wall cavity, connected story-to-story with couplers.
• Bearing plates: Steel plates at each floor level that transfer rod tension into the framing. Plate bending is an interaction effect that must be checked.
• Shrinkage-compensating take-up devices (TUDs): Spring-loaded or mechanical devices that maintain contact as wood dries and consolidates. ICC AC 316 evaluation reports govern their use.
• Compression posting: The stud or post that carries gravity load alongside the rod, preventing the bearing plate from punching through the framing.
• Foundation anchor: Cast-in-place or post-installed anchor embedded in the concrete footing per ACI 318 Chapter 17.
• Transfer straps and diaphragm connections: Elements that collect lateral load from the diaphragm and deliver it to the shear wall boundary.

The load path: Lateral load enters the diaphragm, transfers to the shear wall through sheathing nailing, travels to the boundary stud, and resolves as tension in the rod at the hold-down bearing plate. In a two-story building, the second-floor rod tension accumulates with the first-floor demand before reaching the foundation anchor.

Rod elongation (PL/AE), bearing plate bending, and cumulative wood shrinkage all interact. Ignoring any one of them produces a deflection estimate that is unconservative — and a system that may gap out under service loads before the design lateral event even occurs.

Pro Tip: Manufacturer technical guides from rod system suppliers address all five interaction effects: rod elongation, bearing plate bending, cumulative tension, TUD behavior, and anchorage. Use them as a design checklist, not just a product catalog.

Design approach: loads, combinations, and where simplified rules fail

Code references to check

• ASCE 7: Load combinations (Section 2.3 for LRFD, 2.4 for ASD) govern the factored uplift demand.
• NDS: Timber connection and member design for posts and plates.
• ACI 318 Chapter 17: Anchor design for cast-in-place and post-installed anchors, including breakout, pullout, and side-face blowout checks.
• IBC/IRC: Prescriptive hold-down requirements and reference to SDPWS for shear wall design.

Calculation steps

1. Compute the lateral overturning moment at each story from the diaphragm tributary load.
2. Divide by the wall length to get the net uplift force at the tension boundary.
3. Accumulate tension across stories for stacked wall lines.
4. Apply the governing ASCE 7 load combination to get the factored demand.
5. Select a rod diameter with net tensile area sufficient for the factored demand, then check elongation using PL/AE.
6. Check the foundation anchor per ACI 318 Chapter 17 for the same factored load.

Where simplified methods fail

SDPWS guidelines can underestimate wall strength by approximately 39.9% and overestimate stiffness by approximately 37.5% in some test configurations. When drift limits control, or when torsional irregularities concentrate demand, tabulated connector charts are insufficient. Move to a segment-level calculation or a system-level tool.

Short worked example: two-story overturning and rod sizing

Assumptions:

• Wall length: 4 ft (full-height shear segment)
• Story height: 9 ft each story
• Tributary diaphragm width: 15 ft per story
• Design wind pressure (ASCE 7, Risk Category II): 25 psf on the wall
• Rod material: ASTM F1554 Grade 36 threaded rod, Fy = 36 ksi, Fu = 58 ksi
• Net tensile area for 5/8 in rod: 0.226 in²
• Wood shrinkage allowance: 0.25 in per story (green lumber, 1.5 in plate depth)

Step-by-step calculation:

1. Story lateral force (each story): 25 psf × 15 ft × 9 ft = 3,375 lb
2. Overturning moment at base of second story: 3,375 lb × 9 ft = 30,375 lb·ft
3. Net uplift at second-story wall end (4 ft wall): 30,375 / 4 = 7,594 lb
4. Cumulative uplift at first-story rod (add first-story OTM): 30,375 + (3,375 × 9) = 60,750 lb·ft → 60,750 / 4 = 15,188 lb factored (ASD)
5. Check 5/8 in rod tensile capacity: 0.226 in² × 36 ksi × 0.75 (ASD reduction) = 6,102 lb. Insufficient. Step up to 7/8 in rod: net area = 0.462 in², capacity = 0.462 × 36 × 0.75 = 12,474 lb. Still insufficient for cumulative demand. Use 1 in rod: net area = 0.606 in², capacity = 0.606 × 36 × 0.75 = 16,362 lb. Adequate.
6. Rod elongation per story (PL/AE): P = 15,188 lb, L = 108 in (9 ft), A = 0.606 in², E = 29,000,000 psi → δ = (15,188 × 108) / (0.606 × 29,000,000) = 0.093 in per story
7. Add TUD seating (typical): 0.05 in; add shrinkage: 0.25 in → total per-story deformation ≈ 0.39 in

Compare the total per-story deformation against your specified deformation limit — the SEAW white paper cites 0.20 in (5 mm) per story as a common ASD limit when using ICC AC 316 TUDs. This example may exceed typical deformation limits, so oversizing the rod or reducing shrinkage by specifying kiln-dried lumber is recommended.

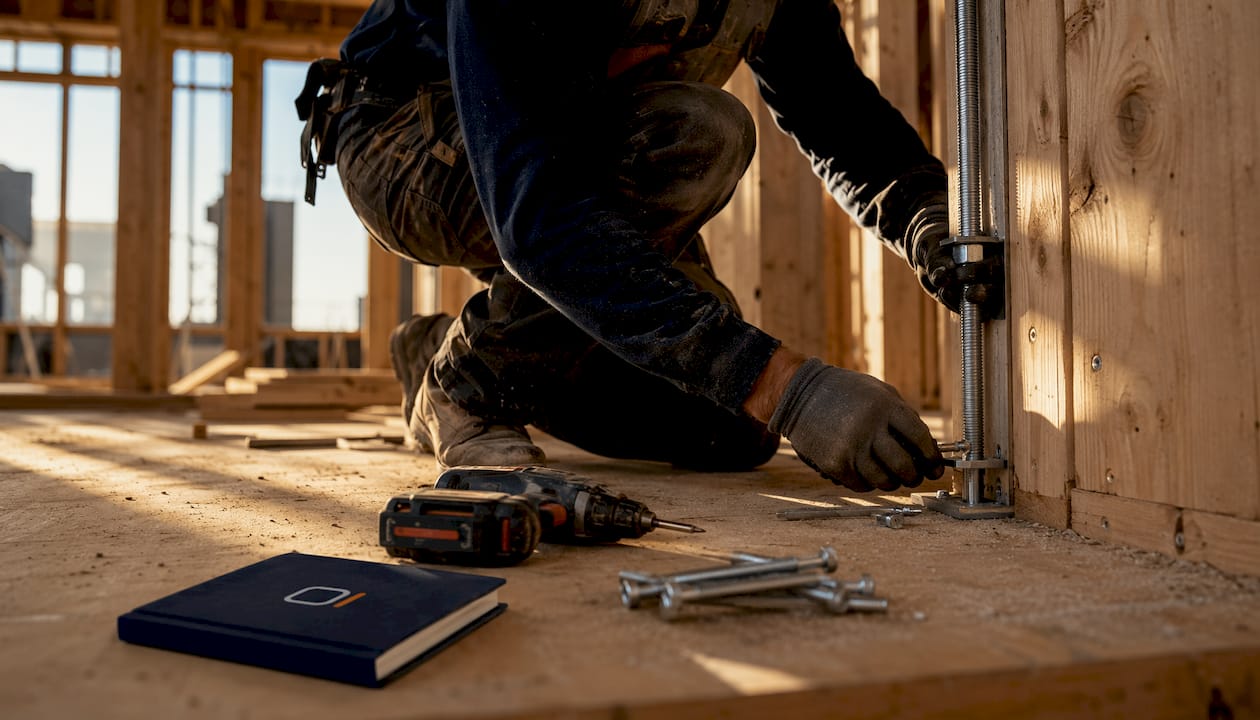

Detailing and installation: plates, anchors, shrinkage, and inspection

Bearing plates and compression posting

Size bearing plates to distribute the rod tension over enough wood area to avoid crushing. Verify plate bending capacity against the rod load. The compression post alongside the rod must be continuous and bear directly on the plate.

Shrinkage management

Place TUDs at each floor level where cumulative shrinkage is significant. Size TUD travel to cover the full expected shrinkage plus rod elongation. Include the TUD seating increment in your deflection calculation. Specify kiln-dried or engineered lumber at bearing locations to reduce shrinkage at the source.

Cumulative wood shrinkage across two stories can easily exceed rod elongation as the dominant deformation source. A TUD that runs out of travel before the building reaches equilibrium moisture content leaves the rod slack — and the hold-down effectively disconnected.

Anchor embedment and edge distances

Specify anchor diameter, embedment depth, concrete compressive strength (f'c), cover, and any supplemental reinforcement per ACI 318 Chapter 17. Check edge distance and corner conditions — a foundation corner anchor with insufficient edge distance can fail in concrete breakout at a load well below the rod's tensile capacity. Coordinate anchor locations with the foundation plan before the pour. Early anchor layout coordination prevents the most common field correction.

Inspection checklist

• Verify anchor location, diameter, and embedment before concrete placement.
• Confirm rod diameter, coupler engagement, and bearing plate seating at each floor.
• Check TUD installation orientation and travel availability.
• Confirm nut torque and bearing plate contact after framing is complete.
• Document for AHJ sign-off.

Pro Tip: Require the framing contractor to photograph anchor rod locations before the concrete pour. That single step resolves most post-pour disputes about mislocated anchors.

Common mistakes and how to avoid them

Rod systems treated as late-stage hardware additions are the most frequent source of field problems. Anchors get missed, bearing plates get undersized, and TUDs get omitted entirely. The result is a system that looks complete but cannot transfer the design load.

Cumulative wood shrinkage is the second most underestimated effect. Green lumber across two stories of plates and sills can shrink enough to gap the nut off the bearing plate, rendering the rod system non-functional under the first significant wind or seismic event.

Undersized anchors are a persistent failure mode. Anchor design should be completed by the EOR at permit time, not deferred to a vendor submittal after the foundation is poured. Deferred anchor submittals create schedule risk and sometimes result in anchors that cannot meet edge distance requirements in the as-built foundation.

Concentrated nail damage in mid-studs occurs when the boundary stud is not continuous or when the sheathing nailing schedule is applied to a stud that also carries the rod bearing plate load. Separate the nailing zone from the bearing zone in your detailing.

Pro Tip: Specify TUD travel explicitly on the structural drawings. "Install per manufacturer" is not sufficient — the EOR should state the required travel in inches so the inspector can verify it.

What your drawings and submittals must show

Plan items:

• Plan view locations of all shear wall segments and rod runs, keyed to wall schedule.
• Cumulative tension demand per story at each rod location.
• Rod diameter, grade, and coupler specification.
• Bearing plate dimensions and thickness.
• Shrinkage/TUD travel allowance per story.

Anchor items:

• Anchor diameter and embedment depth.
• Concrete compressive strength (f'c) and cover.
• Supplemental reinforcement around anchor regions.
• Edge and corner distances with ACI 318 Chapter 17 check.

Submittal and QA items:

• Requirement for a stamped deferred submittal if a vendor provides anchorage design separately.
• Reference to ICC AC 316 evaluation report for any TUD product specified.
• Specified system deformation limit per story (e.g., 0.20 in (5 mm) for ASD with ICC AC 316 TUDs).
• Inspection hold points for anchor verification before pour and rod/plate verification after framing.

Key Takeaways

Hold-down rods are the vertical element of the continuous load path in wood-framed buildings: size them for both tensile strength and elongation, and coordinate anchor design with the foundation before permit submittal.

Why integrated workflows reduce rework on rod hold-down designs

The engineers who run into the most field corrections on rod hold-down systems are not the ones who got the math wrong. They are the ones who got the math right in isolation and then failed to coordinate it with the foundation plan, the framing contractor, and the AHJ submittal package. Rod systems demand early, integrated coordination — not a last-minute hardware selection.

The EOR carries the responsibility for specifying performance criteria: rod diameter, bearing plate size, TUD travel, anchor embedment, and system deformation limits. Accepting a stamped deferred submittal from a vendor is a legitimate path, but only when the EOR has set the performance envelope first. Handing off anchor design entirely without specifying the demand is not a deferred submittal — it is an incomplete design.

The practical implication for 1–2‑story residential work is straightforward. Build the hold-down force calculation into your shear wall workflow from the start, not as a separate afterthought. When cumulative uplift and drift limits interact, a system-level tool that tracks wall segments, hold-down forces, and shrinkage together is faster and more reliable than a spreadsheet that handles each check independently.
