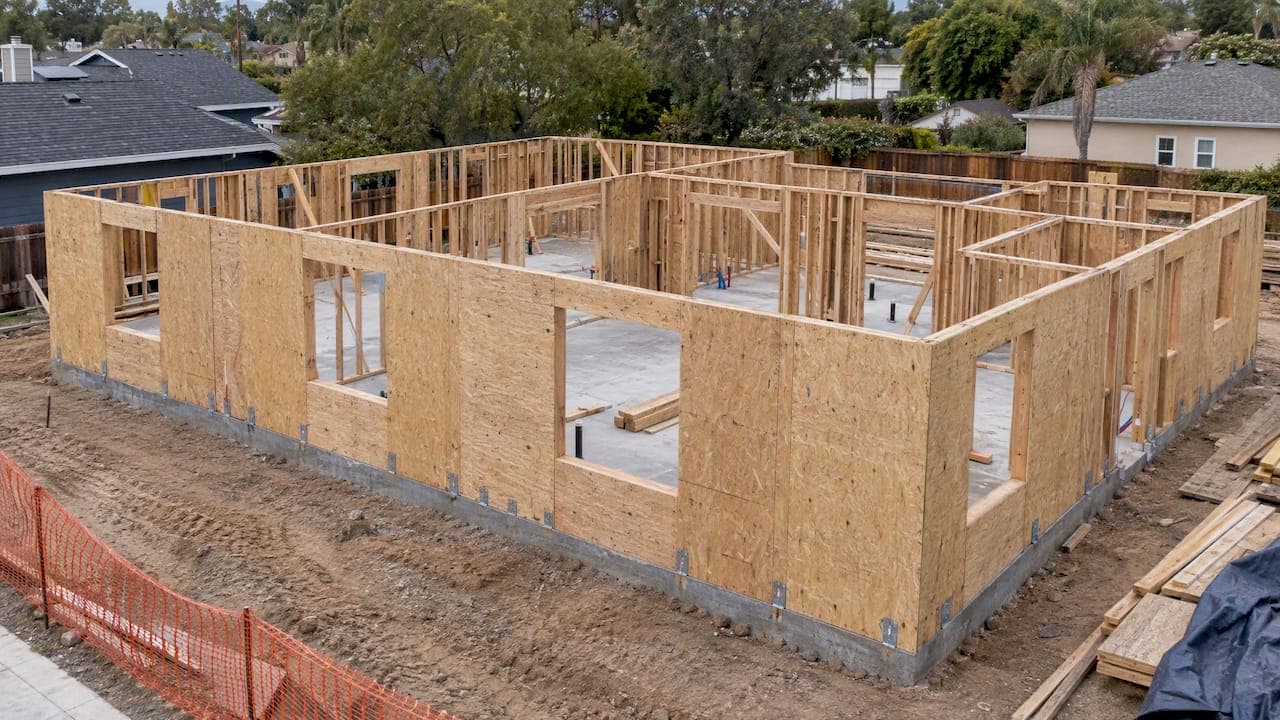

For a wood-framed building in Seismic Design Category (SDC) D, E or F, the redundancy factor ρ is 1.3 unless you show that the structure meets the ASCE 7 conditions for 1.0. That is the short answer. The practical question is whether the shear wall layout you already have qualifies, and how to document it so the plan checker agrees. This guide covers the rule, the checks, a worked layout example and the mistakes that cost residential designers time and lumber.
TL;DR
- In SDC D, E and F, ASCE 7 requires ρ = 1.3 unless the conditions in Section 12.3.4.2 are met, which allows ρ = 1.0.
- For shear walls, the core test is a notional removal: losing one wall must not cut story strength by more than 33% or create an extreme torsional irregularity.
- For light-frame walls, the bay count used in the check can be taken as wall length divided by story height, or twice that value.
- Defaulting to 1.3 is fast but often raises hold-down, strap and wall costs on 1- and 2-story homes. Verify early and you can design the layout around the answer.
- Document the check in the calculation package so the reviewer sees the removed wall, the remaining strength and the torsion result.
Table of Contents
- What the redundancy factor does
- When ρ = 1.3 is required
- The two paths to ρ = 1.0
- A worked layout example
- Default to 1.3 or verify early?
- Perspective: treat redundancy as a layout decision
- How to document the check for plan review
- Common mistakes with ρ on wood buildings
- Redundancy and overstrength are different checks
- Run the check inside your workflow
- FAQ
- Sources
What the redundancy factor does
ρ is a multiplier on the seismic forces used to design the lateral system. It penalizes layouts that depend on very few elements and rewards layouts that spread resistance across many. It is assigned by direction, so you may see ρL and ρT in a design example, each set to 1.3 or 1.0 on its own.
The provision has a specific origin. According to S.K. Ghosh Associates, the redundancy factor came out of observations after the 1994 Northridge earthquake. Economic pressure had pushed designers toward the fewest possible lateral elements, and some buildings had too little residual strength. The code's answer is the familiar idea of not putting all your eggs in one basket.
Redundancy is about reliability, not raw strength. A very strong house can still lack redundancy if one or two massive walls carry an entire direction. If one of them fails locally, nothing is left to pick up the load. That is why a layout with several moderate walls can earn a lower ρ than a layout with one huge wall line.
For a broader view of how the pieces fit together, our guide to wood building lateral system components walks through diaphragms, walls and load paths.
When ρ = 1.3 is required
The default is simple. Per the WoodWorks cantilever diaphragm design example, a structure in SDC D must use ρ = 1.3 unless the ASCE 7 Section 12.3.4.2 conditions are met. The same example notes that ASCE 7-16 requires 1.3 for SDC D, E and F unless a condition to justify 1.0 is satisfied.
That matters in the markets many of our users work in. Large parts of California, Oregon and Nevada, including the Bakersfield area, commonly fall in higher seismic design categories. Your SDC comes from the site's mapped ground motion and soil class, so confirm it for each parcel rather than assuming it from the city. If your site lands in D, E or F, the 1.3 default applies until you justify otherwise.
One limit is worth knowing before you start. ASCE 7 does not permit reducing ρ from 1.3 in SDC D for a structure with an extreme torsional irregularity (Type 1b). In SDC E and F, that irregularity is already prohibited. A layout with a big open garage front and a lopsided wall pattern can fail this test before you count a single bay.
The two paths to ρ = 1.0
Section 12.3.4.2 gives two routes. Use whichever fits the building.
Path 1: story-by-story removal check
Each story that resists more than 35% of the base shear in the direction of interest must comply with Table 12.3-3. For shear walls, the table asks whether removing an individual wall would leave the story with no more than a 33% loss of story strength and no extreme torsional irregularity. The walls you test are those with a height-to-length ratio greater than 1.0, per the WoodWorks example.
The philosophy behind it, as Ghosh Associates explains, is that the most logical way to find a lack of redundancy is to ask whether one component's failure causes an unacceptable loss of story strength or an extreme torsional irregularity.
Having enough walls is not the same as showing it. You must document the notional removal of the most critical element. A sentence such as "the layout is clearly redundant" will not satisfy a reviewer.
Path 2: regular plan with perimeter bays
The second route applies to structures with no horizontal irregularities in the direction of interest at any level. The seismic force-resisting system must include at least two bays of perimeter framing on each side of the structure, in each orthogonal direction, at each story resisting more than 35% of the base shear. ASCE 7 defines the bay count for a shear wall as its length divided by the story height, or twice that ratio for light-frame construction.
That light-frame allowance is easy to overlook, and it can decide whether a wood building justifies the lower factor.
A worked layout example
The numbers below are illustrative, not a real project. They show how the bay count works.
Take a 1-story house with an 8 ft story height. Along the north side of the plan, you have two shear walls.
| Wall | Length | Length ÷ story height | Light-frame bay count (2 × L ÷ h) |
|---|---|---|---|
| Wall A | 8 ft | 1.0 | 2.0 |
| Wall B | 4 ft | 0.5 | 1.0 |
| Total on this side | 12 ft | 1.5 | 3.0 |
Using the light-frame formula, this side of the plan reaches three bays, which clears the two-bay minimum. Using the plain length divided by height, it reaches 1.5. The formula you may use matters here, so state which one you applied and why it is permitted for light-frame construction.
Now repeat the count on the opposite side and in the orthogonal direction. All four sides need to pass. A garage front with a single 4 ft wall beside a 16 ft opening is where this usually breaks down, because that side may offer only one bay.
Then run the torsion check. If the layout has horizontal irregularities, Path 2 is closed and you are back to Path 1, with the removal check and a torsion result.
For real layouts and what reviewers expect to see, our 1-story shear wall layout examples show common plan types, and two shear wall calculation examples show the arithmetic step by step.
Default to 1.3 or verify early?
Two habits are common, and both are legitimate.
- Assume 1.3 and verify later. The WoodWorks design example notes that some designers assume ρ = 1.3 in preliminary design and check near the end whether the forces can be reduced. As of the 2026 version of that example, this is a frequent preliminary practice in SDC D, E and F, with a later reduction justified by the verification.
- Assume 1.0 and confirm as you go. The same example describes setting ρ = 1.0 and verifying that assumption as the design develops. It also observes that plans with an abundance of low aspect ratio shear walls suggest enough redundancy may exist to qualify.
The trade-off is cost. Ghosh Associates points out that reflexively using 1.3 bypasses the analysis but often leads to designs that are more conservative than necessary, with more framing and hold-down material. For small residential wood projects, the same source says the effort of justifying 1.0 can pay for itself by cutting the number or length of required shear walls.
A 30% increase in design force is not trivial. It flows into unit shears, nailing schedules, hold-down capacity and strap forces. Reducing it can turn a wall that needs a heavier nail schedule and a larger hold-down into one that does not. Our article on cutting hold-downs from six to two shows how layout decisions compound this way.
Early framing decisions drive results on every wood project, including timber frame extension design in the UK, which follows different codes than ASCE 7. In US seismic design, the earliest decision that matters is where you put the walls.
Perspective: treat redundancy as a layout decision
We build ShearWise Pro for 1-story and 2-story wood buildings, so we see the same pattern in residential layouts. Redundancy is usually settled by the floor plan long before anyone runs the final numbers. When walls are spread around the perimeter, with sensible aspect ratios and balanced stiffness, the verification tends to be a documentation exercise. When walls are bunched at one end of a long plan, no amount of paperwork fixes it.
Terry Malone, a recognized expert in wood diaphragm and shear wall design, advises that defaulting to 1.3 to avoid the math often produces over-conservative, costly residential designs. We agree with the underlying point. Verifying redundancy early lets you optimize the layout and may reduce the number of elements you need.
Our advice is to run the check on the first workable layout, not the last one. If a single wall removal shows a problem, you can still move a wall or lengthen a segment. At permit submission, you can only add hold-downs.
The tools should not get in the way. Wall lines, openings, full-height segments and hold-down forces belong in one organized project, so a change to one wall updates the rest of your check instead of triggering a rebuild of a spreadsheet.
— Evalin
How to document the check for plan review
Reviewers need to follow your reasoning in a few minutes. A clear submission includes the following.
- Seismic design category and the governing ρ for each direction. State ρL and ρT separately if they differ.
- Which path you used. Name the Section 12.3.4.2 route, either the story removal check or the regular plan with perimeter bays.
- The story shear share. Show whether the story resists more than 35% of the base shear in the direction of interest.
- The wall removed. Identify the most critical wall, its aspect ratio and why it is the governing case.
- The remaining strength. Show that the loss of story strength after removal does not exceed 33%.
- The torsion result. Confirm the layout after removal has no extreme torsional irregularity (Type 1b).
- Bay counts, if you used Path 2. Show the length divided by height, or twice that for light-frame, for each perimeter side.
If your check fails for a direction, say so and use 1.3 there. Using 1.0 in one direction and 1.3 in the other is a normal outcome, not an error.
Our guide on shear wall layout checks that pass permit review covers the other items reviewers look at, and common shear wall design mistakes lists the comments that come back most often.
Common mistakes with ρ on wood buildings
- Testing the wrong wall. The removal check targets walls with an aspect ratio over 1.0. A long, squat wall is not the usual governing case.
- Skipping the documentation. Saying the building has enough walls does not show a notional removal.
- Ignoring torsion. A layout can pass the 33% test and still fail on an extreme torsional irregularity.
- Applying one ρ to both directions. The check is directional, so run it twice.
- Forgetting the 35% trigger. Stories that resist 35% or less of the base shear in the direction of interest are not governed by the same test, so check the story shear share before building the argument.
- Missing the light-frame bay formula. Using plain length over height when the doubled form is permitted can understate your bays.
- Updating forces but not details. When ρ changes, unit shears, hold-downs, straps and collector forces must change with it.
The shear wall ratio guide covers aspect ratios in more depth. For the load path beyond the walls, see our guides to wood frame building lateral analysis and California lateral force resisting systems.
Redundancy and overstrength are different checks
Readers often confuse ρ with the overstrength factor Ω0. They answer different questions. ρ addresses reliability, meaning how the system behaves if an element is lost. Ω0 raises forces for specific elements, such as a beam or post supporting a shear wall, that must stay elastic while the system yields. A SEAU presentation lists wood shear walls with R = 6.5, Cd = 4 and Ω0 = 3 among its examples. Check the edition of ASCE 7 your jurisdiction has adopted before you rely on those values.
FEMA's guidance on earthquake-resistant design frames redundancy as part of a philosophy that expects damage in strong shaking and tries to prevent collapse. A system with more paths for load gives you more margin when something does not perform as modeled.
Run the check inside your workflow
If you design 1-story and 2-story wood homes, ShearWise Pro keeps wall lines, openings, full-height segments, hold-down forces, transfer straps, roof information and story drift checks in one project and exports clean PDF reports for review coordination. That makes it practical to test a layout, change a wall and see the effect before you submit.
You can start with the Three-Report Trial at $0, which gives you three watermarked reports. After that, Professional Monthly is $29 per month and Professional Annual is $250 per year. See the plans on the ShearWise Pro pricing page, or read more about our shear wall software for residential wood buildings.
For engineers, architects, designers, drafters and builders, the goal is the same: a layout that is efficient, reviewable and defensible. For more on the system you are checking, see our guide to wood framing lateral systems.
FAQ
Is the redundancy factor always 1.3 for wood buildings?
No. It is 1.3 as the default for SDC D, E and F, but ASCE 7 Section 12.3.4.2 lets you use 1.0 when you meet its conditions. You verify by direction, so one direction may qualify while the other does not. Confirm your SDC and the adopted code edition for the project.
How do I count bays for a light-frame shear wall?
ASCE 7 calculates the number of bays for a shear wall as the wall length divided by the story height, or two times that ratio for light-frame construction. A 16 ft wall in an 8 ft story therefore counts as four bays by the light-frame formula. State the formula you used in your calculations.
What does the 33% limit mean?
It is the maximum story strength loss allowed when you notionally remove one wall in the removal check. If the remaining walls retain enough strength, and the resulting layout has no extreme torsional irregularity, the story can justify ρ = 1.0. You need to document the removed wall and the result.
Is it worth the effort to justify 1.0 on a small house?
Often yes. Ghosh Associates notes that on wood-framed residential projects the analysis can pay for itself by reducing the number or length of required shear walls. If the plan is already redundant, the check is quick. If it fails, you learn that early enough to move a wall.
Does ρ apply to every seismic design category?
This guide focuses on SDC D, E and F, where the 1.3 default applies. For other categories, check the provisions of the ASCE 7 edition your jurisdiction has adopted rather than relying on a general rule.
